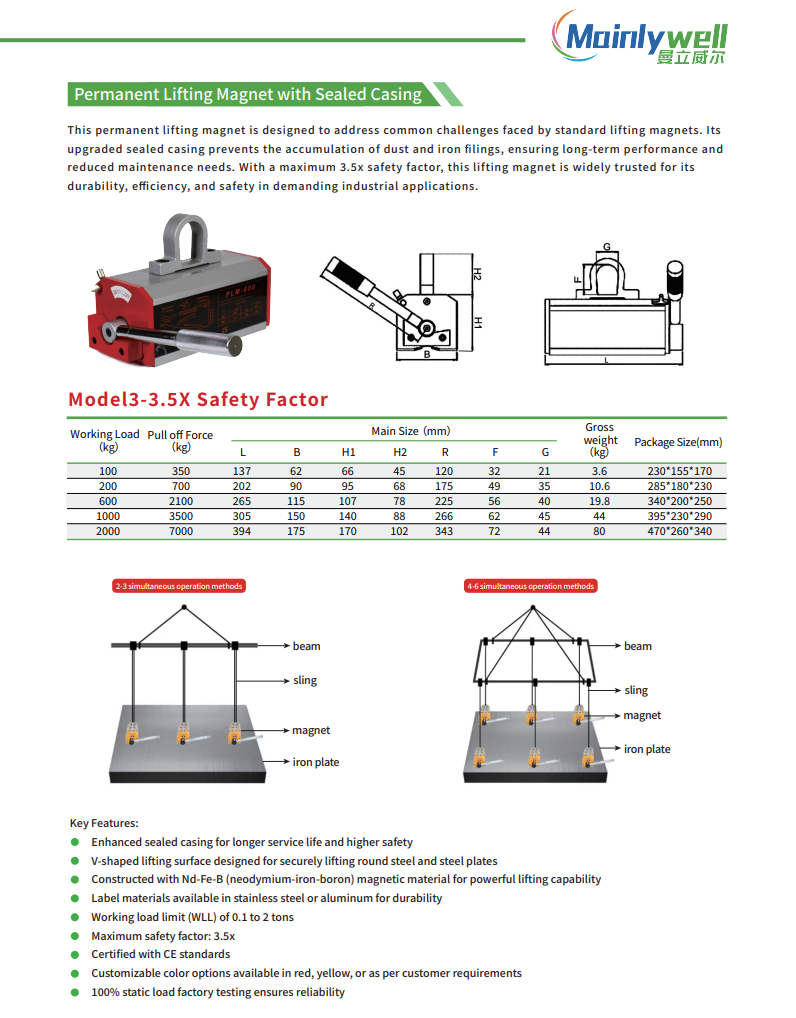

This permanent lifting magnet is designed to address common challenges faced by standard lifting magnets. Its upgraded sealed casing prevents the accumulation of dust and iron filings, ensuring long-term performance and reduced maintenance needs. With a maximum 3.5x safety factor, this lifting magnet is widely trusted for its durability, efficiency, and safety in demanding industrial applications.
Applications
Lifting and handling steel plates, iron blocks, cylindrical magnetic materials, smooth mechanical components, and various molds
Industries such as mechanical manufacturing, automotive production, shipbuilding, dock operations, transportation, and construction
Key Features
Enhanced sealed casing for longer service life and higher safety
V-shaped lifting surface designed for securely lifting round steel and steel plates
Constructed with Nd-Fe-B (neodymium-iron-boron) magnetic material for powerful lifting capability
Label materials available in stainless steel or aluminum for durability
Working load limit (WLL) of 0.1 to 2 tons
Maximum safety factor: 3.5x
Certified with CE standards
Customizable color options available in red, yellow, or as per customer requirements
100% static load factory testing ensures reliability
Notes:
Permanent lifting magnets are exclusively designed for vertical lifting applications.
For steel plates exceeding 3 meters in length, multiple magnets should be used together to ensure safety and stability.
Not recommended for steel plates thinner than 15 mm, as performance diminishes with reduced thickness.
Lifting capacity is 30% of stated parameters for cylindrical steel. For detailed specifications, contact our service team.
The magnet performs best with thicker steel plates.
Provide details about the material for your lifting operation, and our service team will recommend the most suitable lifting magnet for your requirements. Spare parts like handles and bearings are available separately upon request. contact us for further assistance.
