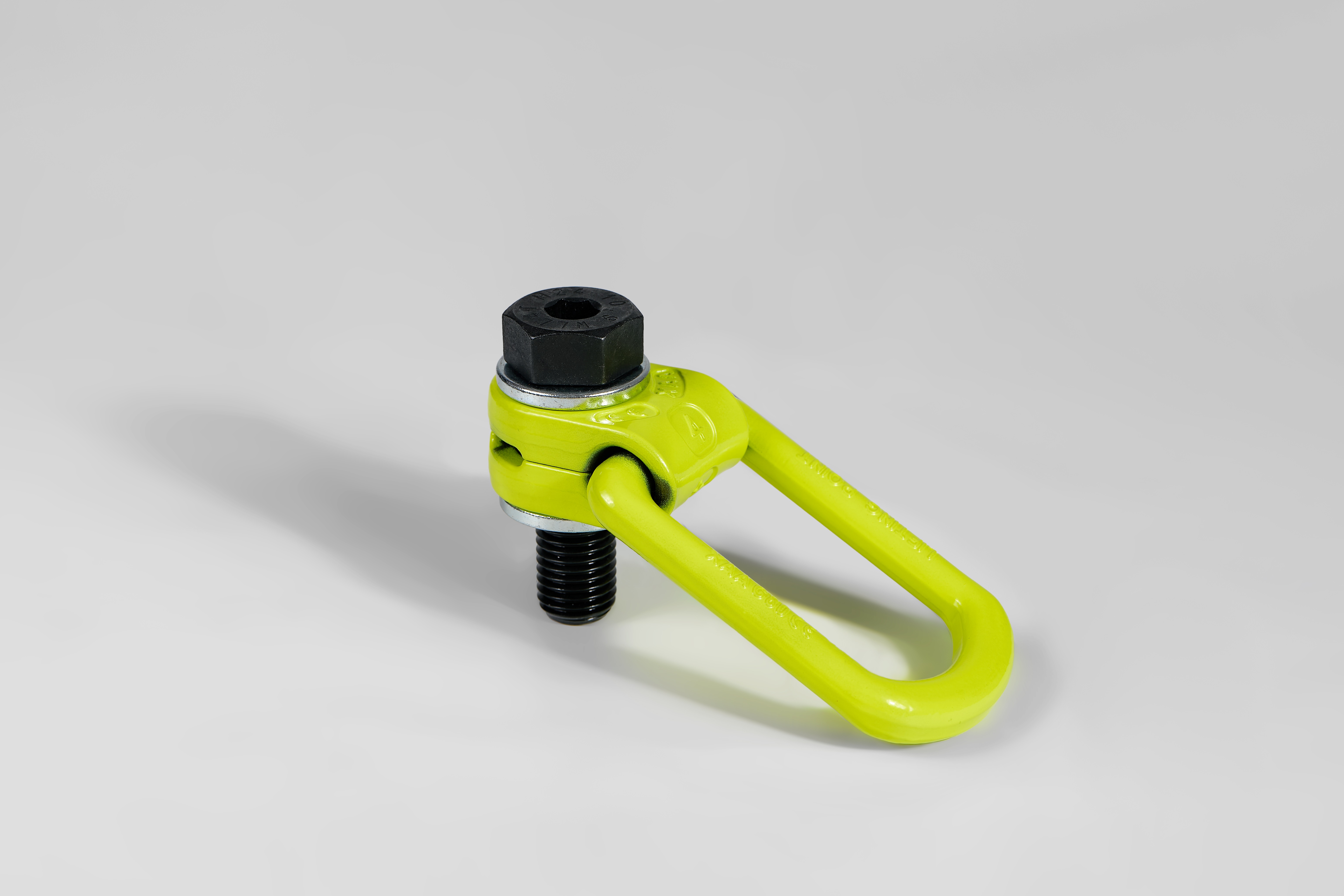

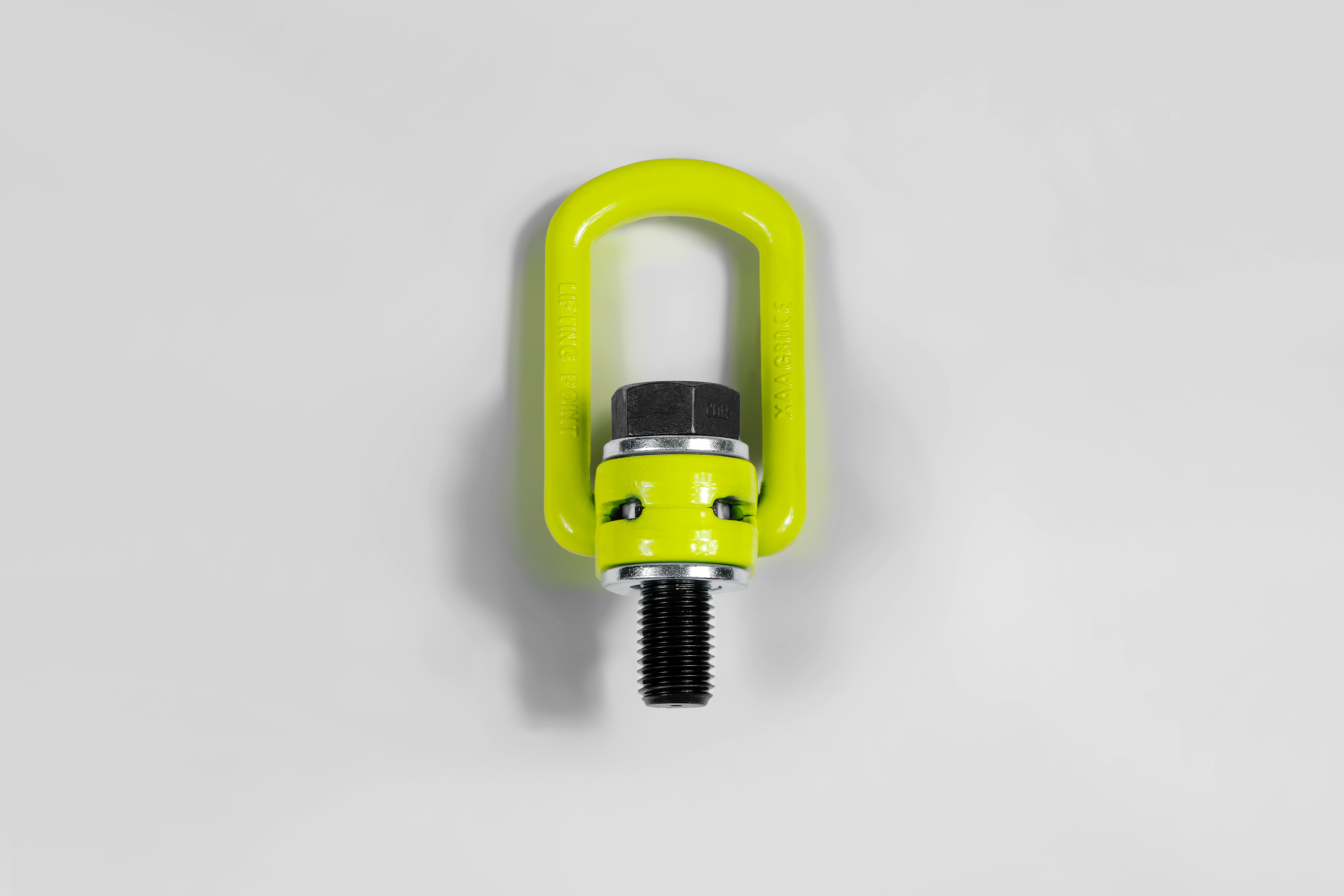

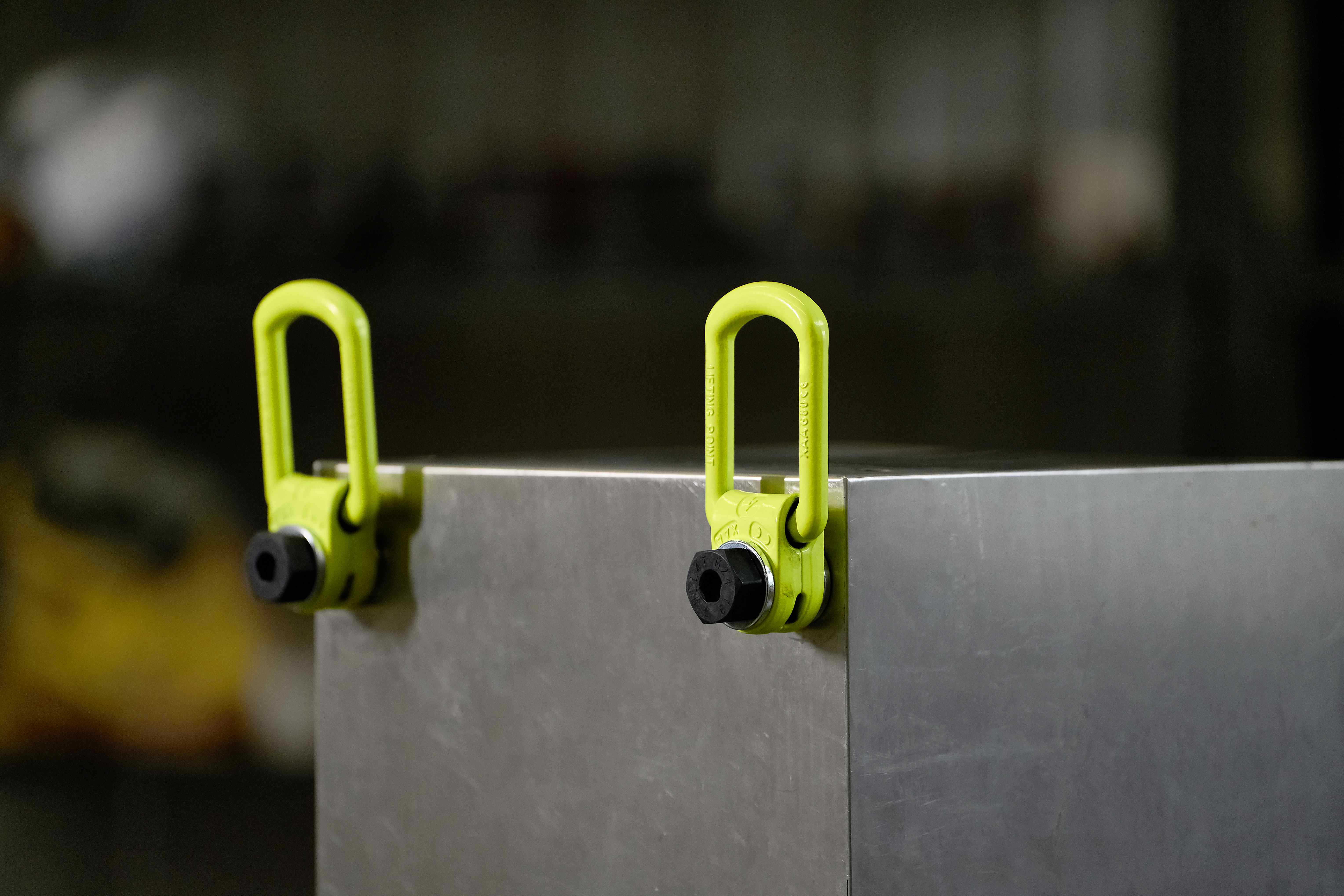

The side load lifting point is designed to handle side load lifting operations with precision and safety. With a working load limit of 0.3 to 22.5t, it offers full 360° rotation and 180° pivoting to adapt seamlessly to complex lifting scenarios. This horizontal lifting point is engineered for versatile applications in oil and gas, industrial manufacturing, and transportation sectors.

Inspection and Standards

• Passed 6g plug gauge inspection for compatibility with precision-threaded holes

• Endured 1.5x load fatigue testing (20,000 cycles) and 2.5x rated load testing

• Magnetic particle inspection ensures crack-free integrity

• Complies with EN1677-1 production standards, with certified test reports available upon request

Key Features

• Designed for side load lifting applications, the ring features an internal positioning snap ring mechanism and a bushing on the bolt section to securely lock the ring in place, preventing unnecessary movement or collisions during non-operational periods.

• Equipped with a dual hexagon design on the bolt top for easy and efficient installation

• Capable of 360° rotation and 180° pivoting, enabling versatility for complex lifting tasks

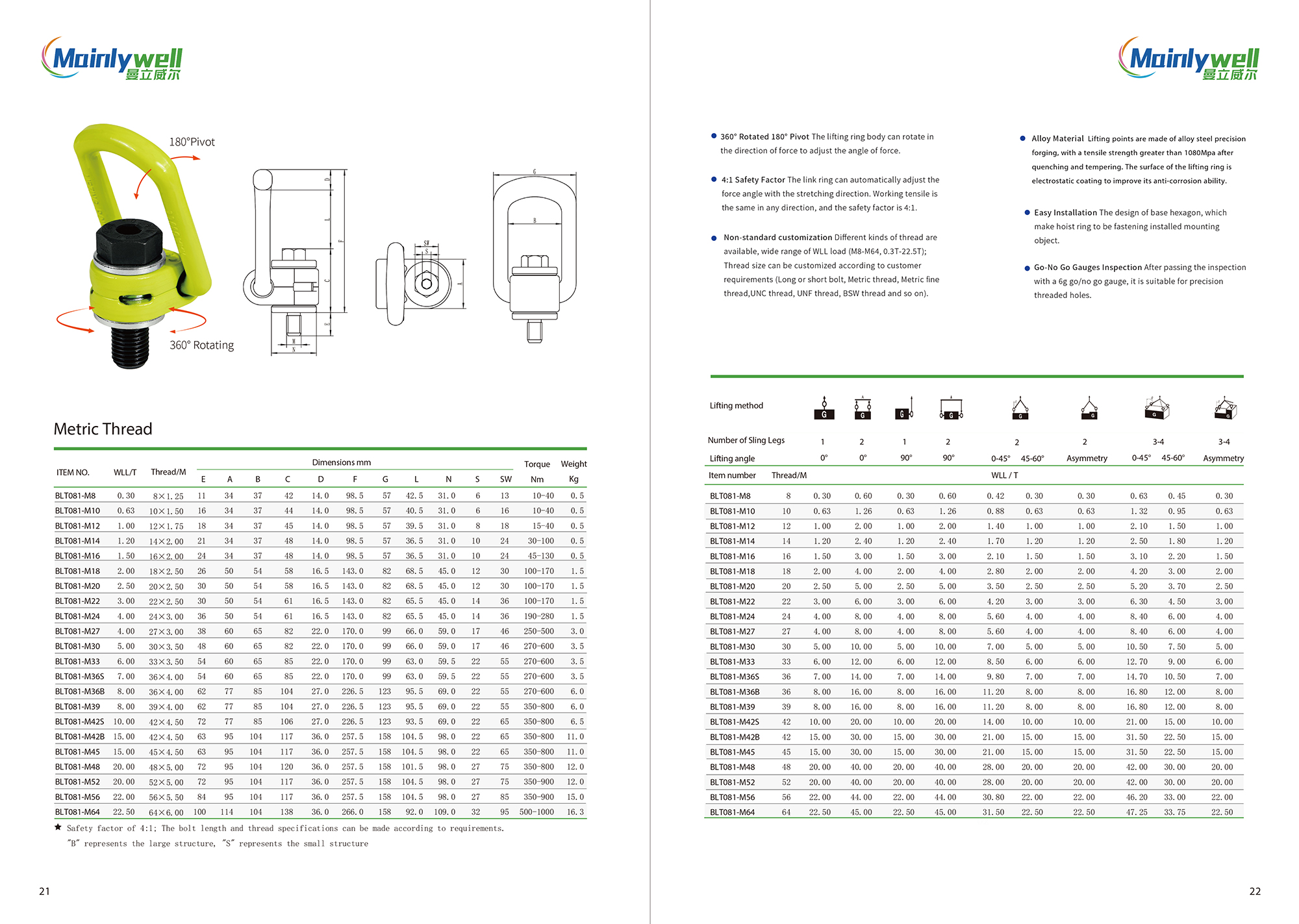

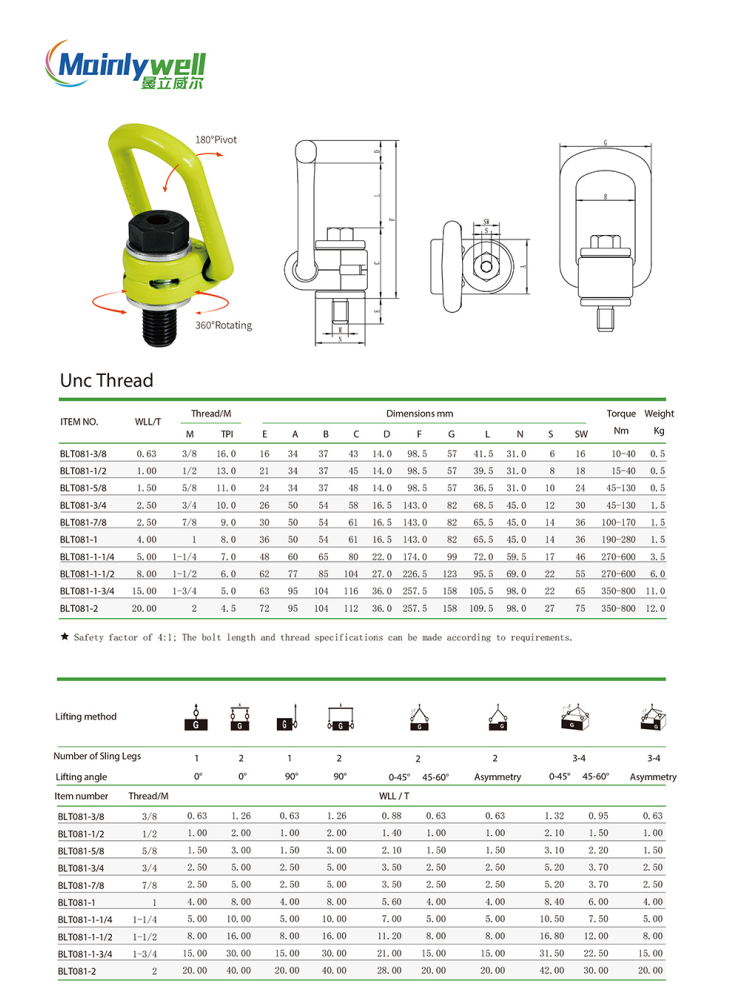

• Available in M8-M64, with a split design for the ring and bolt to accommodate custom thread sizes (e.g., lengthened, shortened, coarse, fine, metric, or UNC threads)

• Working load limit (WLL) of 0.3-22.5t, with a 4:1 safety factor. All products undergo 100% non-destructive testing.

• Each load-bearing component is stamped with a production batch number for traceability.

• Forged from high-strength chromium-molybdenum alloy steel, heat-treated (quenched and tempered) for superior durability and toughness

• Epoxy resin electrostatic powder coating for the ring and black oxide treatment for the bolt ensures resistance against wear and corrosion
