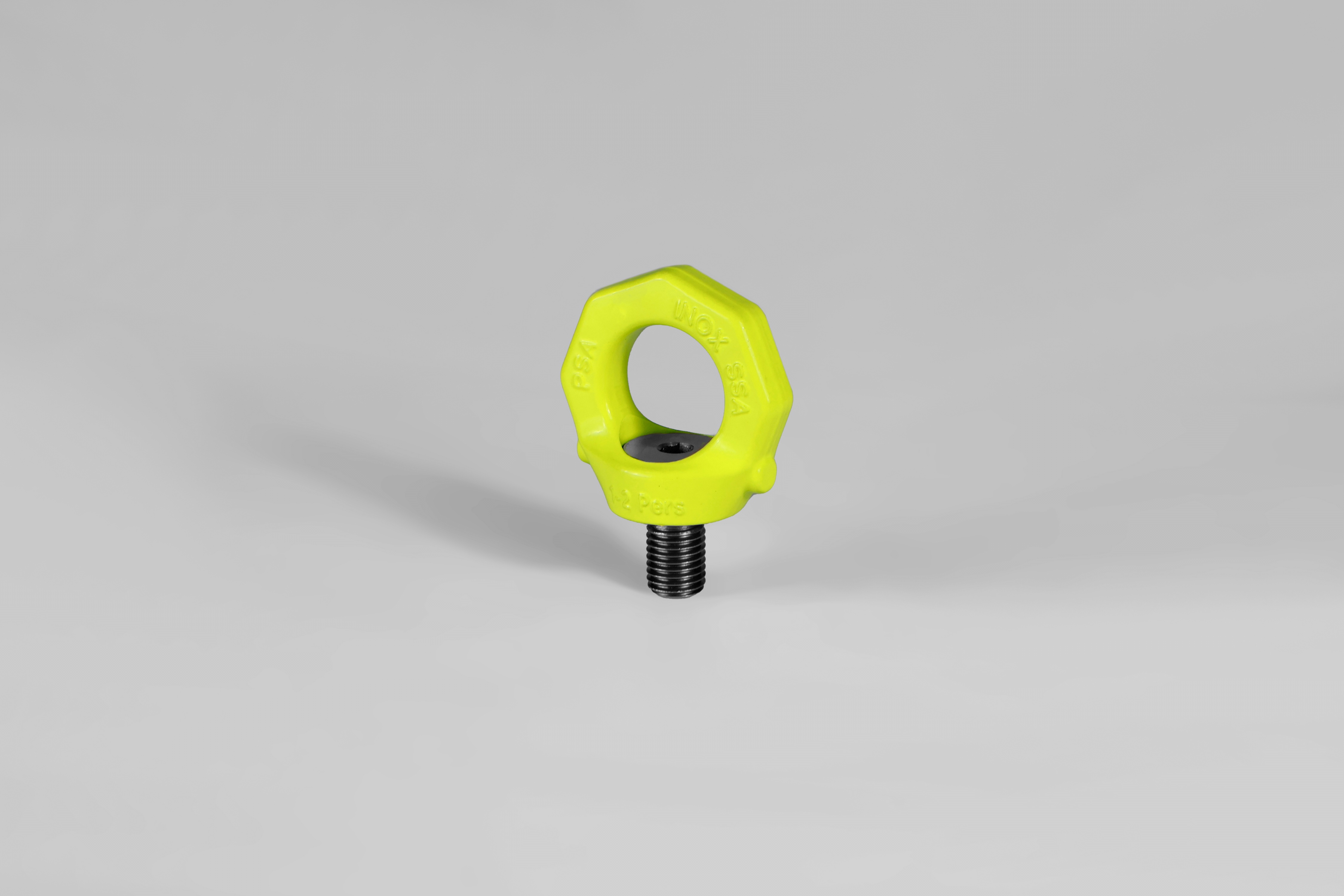

The fall protection anchorage point is a personal safety device designed for high-altitude operations, ensuring secure attachment and fall prevention for up to two persons. This fall arrest eyebolt offers 360-degree rotation to automatically adjust to the direction of force, making it a reliable choice for demanding outdoor environments, including construction and aerial work.
Inspection and Standards
Fully traceable forged components and hexagonal bolts with certified reports
Compliant with occupational safety standards EN795 and TS16415
Declared load capacity of 1–2 persons per DIN EN365 standards
Bolts tested to withstand 22.2KN/person load and dynamic drop tests with 150kg loads (EU standard: 100kg)
100% magnetic particle inspection ensures no cracks or defects
Key Features
Functions as a fall arrest anchorage point for personal safety, compatible with safety harnesses in high-altitude operations
Long-term stability in outdoor environments, including marine and high-chloride conditions
360° rotation adjusts automatically to the force direction, enhancing safety during operations
Hexagonal socket bolt design for quick and easy installation

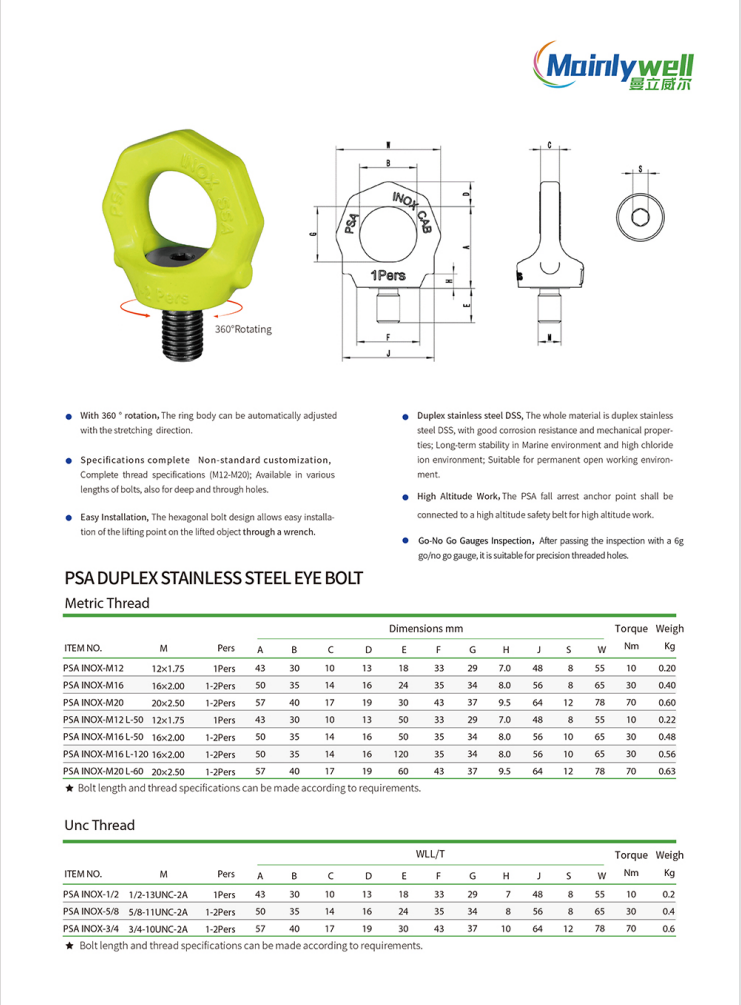

Available in M12–M20 sizes with customizable bolt lengths for deep or through holes
Clearly marked with a load capacity of 1–2 persons for standardized use
Manufactured from duplex stainless steel (DSS), offering excellent corrosion resistance and mechanical strength
Epoxy resin electrostatic powder-coated ring body for added durability and aesthetics
Each load-bearing component is marked with a batch number for traceability
