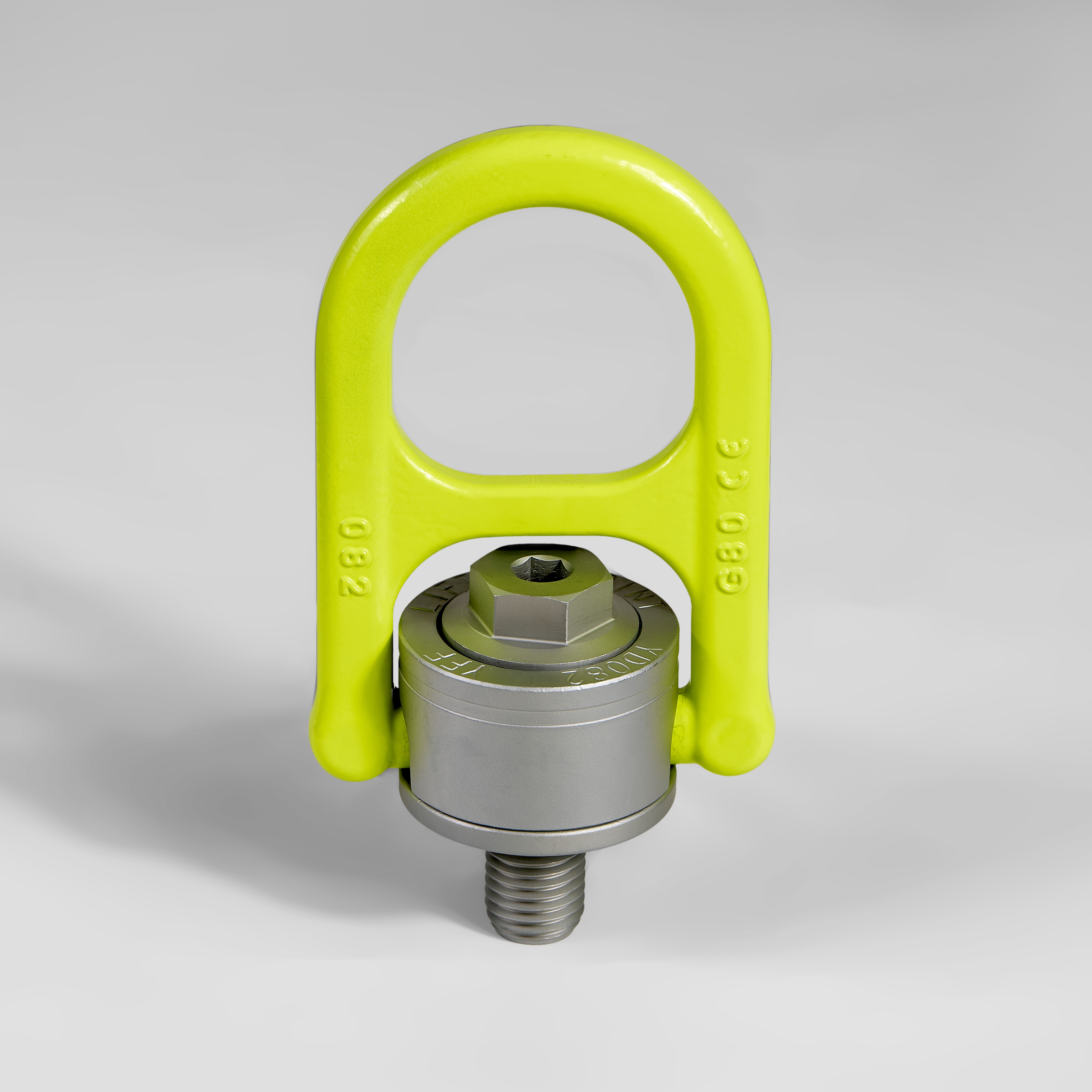

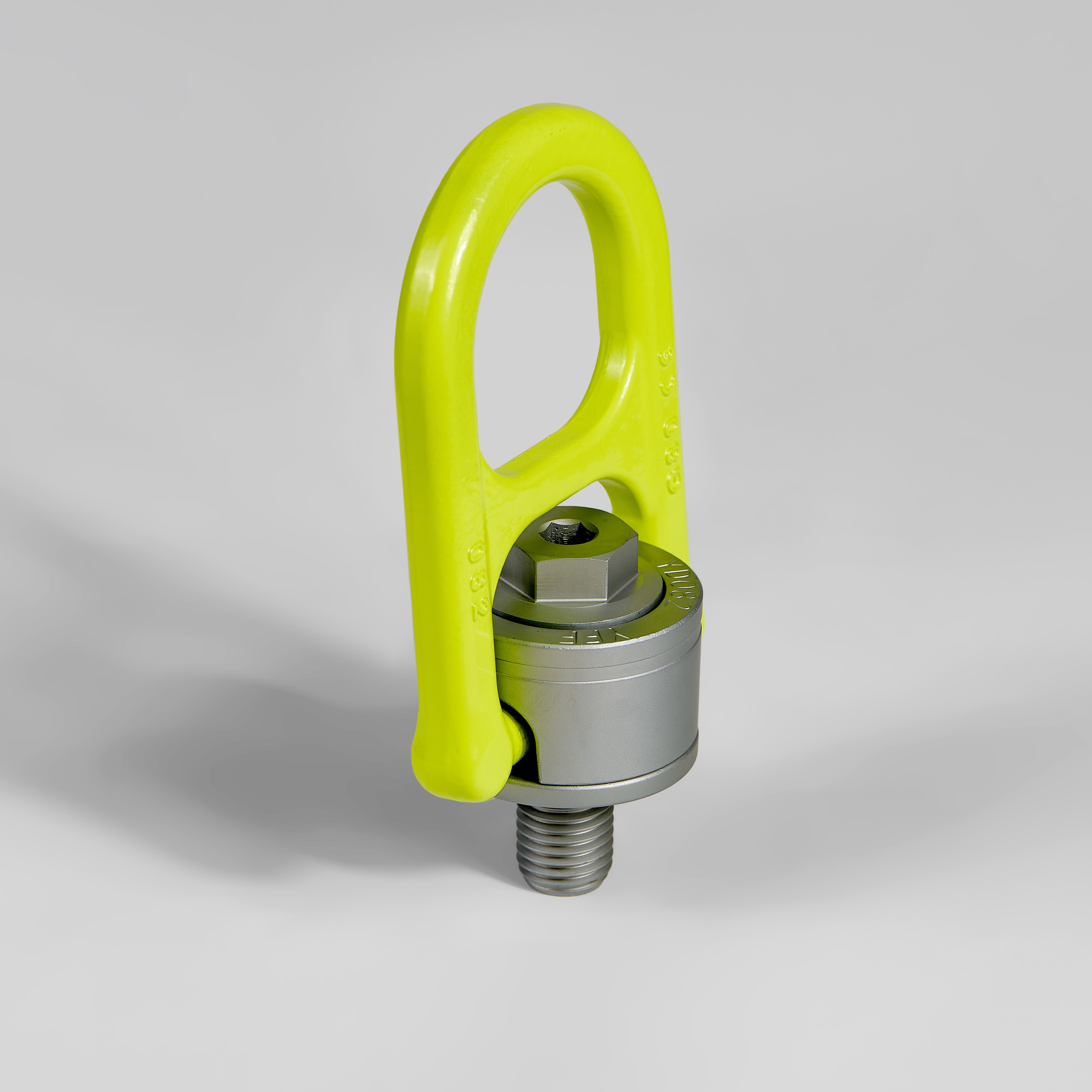

This heavy duty lifting point offers a working load limit of 0.5t to 9t, making it an excellent choice for operations where precision and efficiency are critical. It is optimized for applications requiring lighter equipment, ensuring easy handling without compromising on strength or reliability. Its one-piece forged construction eliminates weld points for enhanced safety, while the corrosion-resistant coating and durable design allows precise lifting tasks in demanding environments, including marine and industrial settings.

Inspection and Standards

• Passed 6g plug gauge inspection, ensuring compatibility with precision-threaded holes

• Successfully completed 1.5x fatigue testing (20,000 cycles) and 2.5x rated load testing for reliability

• Verified through magnetic particle inspection to confirm a crack-free structure

• Manufactured to EN1677-1 standards, with certified test reports available upon request

Key Features

• Made from high-strength chromium-molybdenum alloy steel, quenching and tempering processes enhance its durability and tensile strength

• Features a one-piece forged design without weld points, making it lighter in weight while maintaining the same load-bearing capacity

• Equipped with a dual hexagon bolt design at the top, enabling quick and convenient installation

• Advanced anti-corrosion treatments on bolts make it suitable for standard operations as well as high-chloride and marine environments

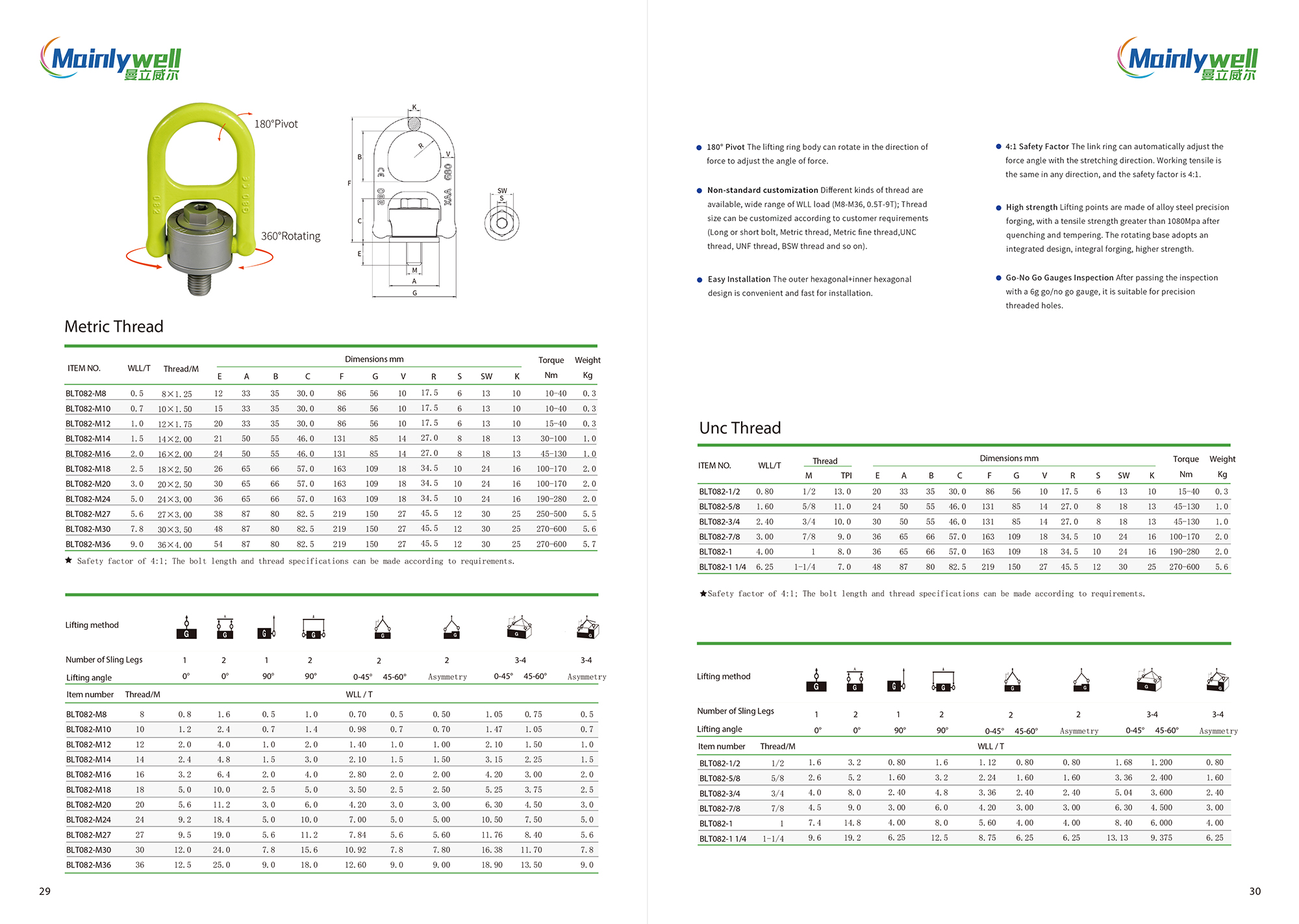

• Available in thread sizes ranging from M8 to M36, with custom options such as extended or shortened threads, coarse or fine threads, and both metric and UNC specifications

• Provides a working load limit of 0.5-9t, with a 4:1 safety factor and 100% non-destructive inspection

• Each load-bearing component is stamped with a unique production batch number, ensuring easy traceability

• Features an epoxy resin electrostatic powder coating for the ring body and Dacromet rust-proof treatment for the bolt
